Japanese journalist Goichi Hosoda developed the system across three decades. The first volume of Ichimoku Kinko Hyo was published in 1969. His work began in the 1930s and continued after the war.
The system answers four market questions at once. Where is the trend going? How strong is the trend? Where might price reverse? Where do future support and resistance sit?

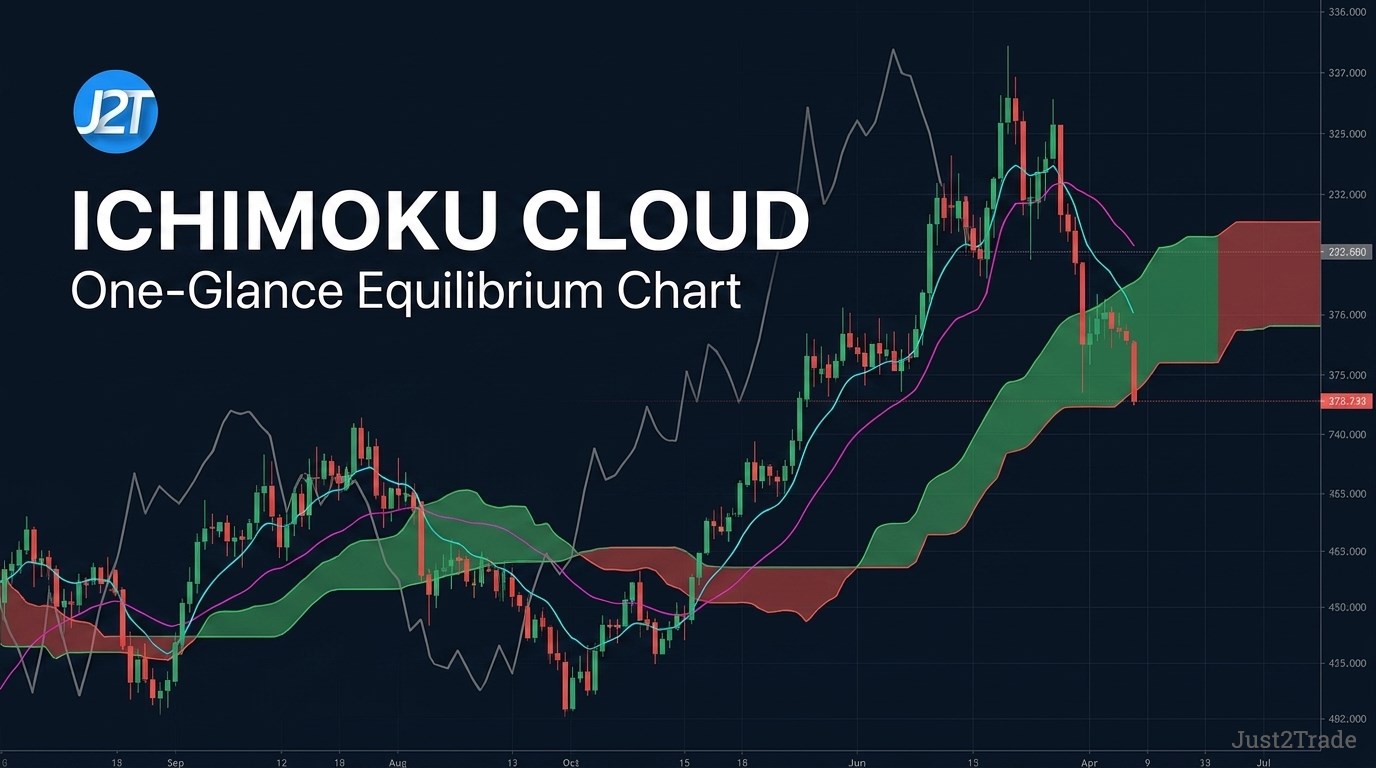

The name Ichimoku Kinko Hyo translates as "one-glance equilibrium chart." Five components produce this glance. The Tenkan-sen tracks short-term momentum. The Kijun-sen anchors medium-term equilibrium. Two forward-projected spans form the Kumo. The Chikou Span confirms sentiment.
The Ichimoku Cloud is applied to forex majors, equity indices, and commodity futures. Analysts use it on daily and higher timeframes. Just2Trade's EUR/USD forecast and price prediction shows the framework applied to a major currency pair. Its combination of trend, momentum, and support and resistance in one overlay reduces the need for multiple layered indicators.
The Ichimoku Cloud is a Japanese technical indicator. It plots five lines to show trend, momentum, and support and resistance in one view. Corporate Finance Institute describes it as an all-in-one system rather than a single-purpose tool.
Goichi Hosoda (1898-1982) was a Japanese financial journalist. He wrote under the pen name Tarō Sagami before the war, then adopted Ichimoku Sanjin after 1945.
Hosoda began the project in the 1930s. He spent more than thirty years refining the formulas that identify Market Trend direction. The first volume was published in 1969.
The default periods of 9, 26, and 52 reflect the Japanese trading week of that era, including Saturday half-day sessions.
The Ichimoku Cloud uses midpoint calculations. Each line takes the highest high and lowest low over a period. Standard moving averages used in Moving Average Convergence Divergence (MACD) average closing prices. The Ichimoku Cloud also generates built-in Trading Signals and projects future support and resistance zones. No conventional moving average does either.
| Feature | Ichimoku Cloud | Standard Moving Average |
|---|---|---|
| Base value | High-low midpoint | Closing price |
| Line count | Five plus shaded cloud | One |
| Forward projection | 26 periods ahead | None |
| Built-in signals | Yes | No |
Source: Corporate Finance Institute.
The Tenkan-sen is the midpoint of the highest high and lowest low over 9 periods. Its short lookback makes it the most reactive Ichimoku line.
The Tenkan-sen plays three roles. It indicates short-term trend direction. The Tenkan-sen also acts as dynamic support or resistance. It forms the trigger line in the Tenkan/Kijun crossover.
A rising Tenkan-sen suggests short-term bullish momentum. A falling Tenkan-sen suggests short-term bearish momentum.
The Kijun-sen is the midpoint of the highest high and lowest low over 26 periods. It represents the medium-term equilibrium price.
The Kijun-sen serves three roles. It filters the medium-term trend. It acts as dynamic support and resistance. It produces signals through crossovers with the Tenkan-sen and through price crossovers.
A flat Kijun-sen signals indecision. The Tenkan/Kijun relationship weakens when the Kijun-sen flattens.
Senkou Span A is the average of the Tenkan-sen and Kijun-sen. The result is plotted 26 periods forward. Its shorter-period inputs make it the faster cloud boundary.
The projection reveals future support and resistance zones. Together with Senkou Span B it forms the Kumo. When Span A crosses Span B in the projected zone, the cloud changes colour. This gives early visibility of a possible trend shift.
Senkou Span B is the midpoint of the highest high and lowest low over 52 periods. The result is plotted 26 periods forward. Its longer lookback makes it the structurally stable cloud boundary.
The gap between Span A and Span B defines cloud thickness. A thicker Kumo represents a stronger historical equilibrium zone. Stronger equilibrium means stronger support and resistance.
The Chikou Span plots the current closing price 26 periods behind. Its role is to confirm signals from the other Ichimoku Cloud components.
A Chikou Span above prior candles indicates bullish sentiment. A Chikou Span below prior candles indicates bearish sentiment. A Chikou Span tangled with prior candles reflects consolidation.
In fast markets the Chikou may delay entries. Some traders use it as a filter rather than a strict gate.

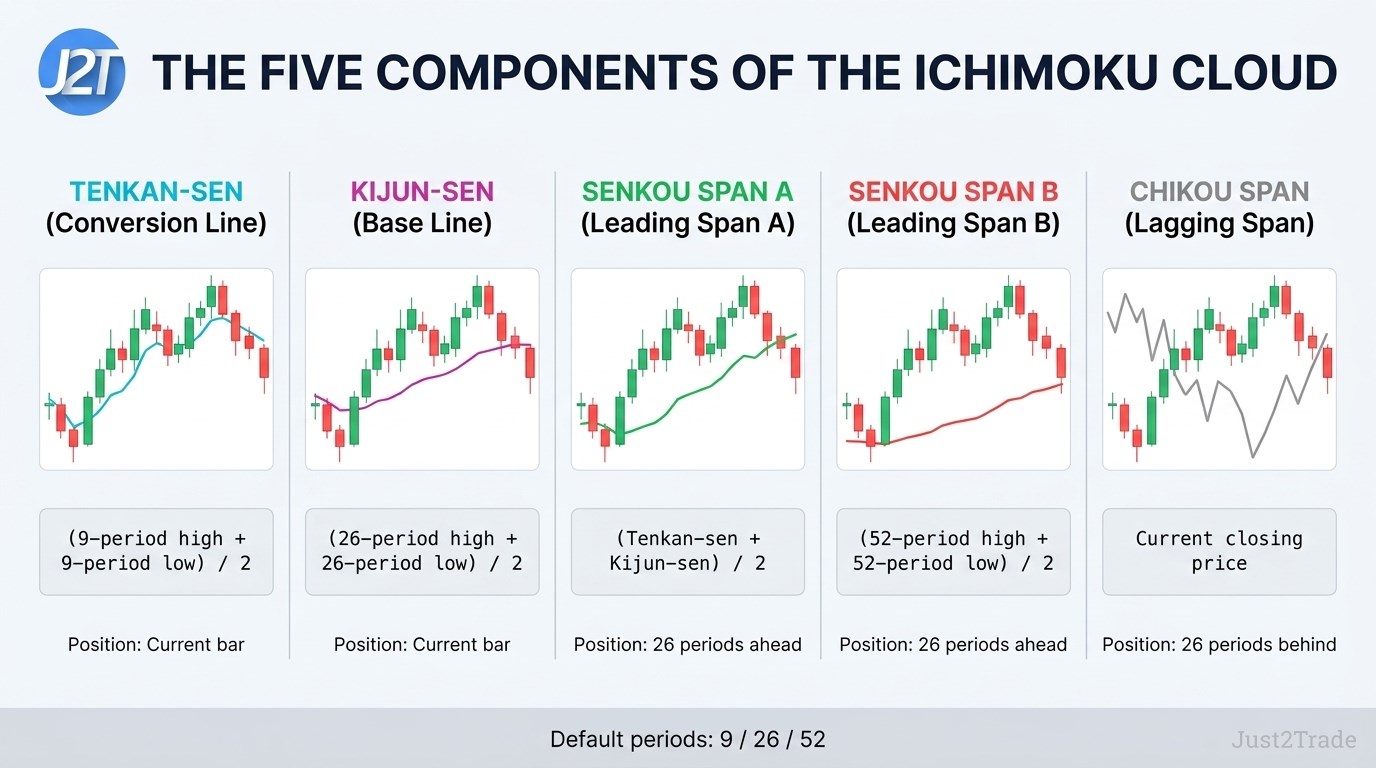

Every Ichimoku line uses a midpoint calculation. The formula pairs the highest high with the lowest low over the lookback period. Closing-price averages are not used.
| Component | Formula | Position |
|---|---|---|
| Tenkan-sen | (9-high + 9-low) / 2 | Current bar |
| Kijun-sen | (26-high + 26-low) / 2 | Current bar |
| Senkou Span A | (Tenkan + Kijun) / 2 | 26 periods ahead |
| Senkou Span B | (52-high + 52-low) / 2 | 26 periods ahead |
| Chikou Span | Current close | 26 periods behind |
Source: Corporate Finance Institute.
The Ichimoku Cloud is a built-in indicator on most charting platforms. Setup takes under one minute. The full five-line version is required for signal analysis.
The setup follows five steps. Step 1: open the indicator library. Step 2: search for "Ichimoku Cloud" or "Ichimoku Kinko Hyo." Step 3: select the full version. Step 4: confirm the defaults remain 9, 26, and 52. Step 5: apply the indicator to the price chart.
The full version plots the Tenkan-sen, Kijun-sen, and Chikou Span alongside the cloud.
The Kumo is the shaded area between Senkou Span A and Senkou Span B. When Span A trades above Span B, the cloud is green (bullish). When Span A trades below Span B, the cloud is red (bearish).
Cloud thickness reflects the strength of the support and resistance zone. A thick Kumo indicates a strong historical equilibrium. The Kumo Twist forms when Span A crosses Span B in the projected zone. This changes the future cloud colour before price arrives.
This order builds a coherent view before any trade decision.

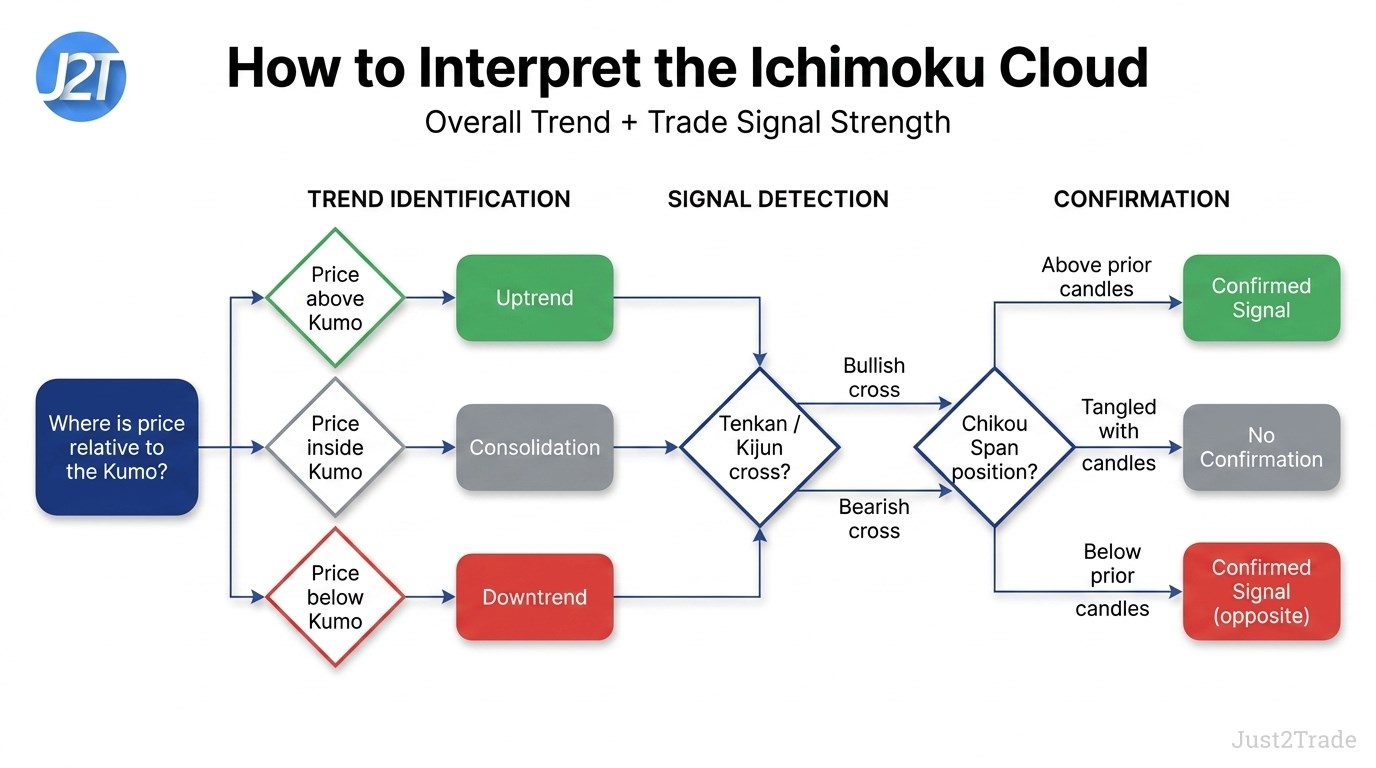

Trend direction comes from price position relative to the Kumo. Price above the Kumo signals an uptrend. The cloud then acts as support. Price below the Kumo signals a downtrend. The cloud then acts as resistance. Price inside the Kumo indicates consolidation.
Traders often add trend lines drawn on price for confluence. The Kumo offers a zone rather than a single line.
Cloud thickness measures the gap between Senkou Span A and Senkou Span B. A thick Kumo represents a strong support and resistance zone. A thin Kumo indicates a weak zone.
Thickness also sets breakout conviction requirements. A breakout through a thick Kumo carries more weight than a breakout through a thin one. A flat cloud angle warns of decelerating momentum. A steeply sloped cloud confirms strong directional conviction.
The Kumo Twist appears 26 periods ahead of current price. It forms when Senkou Span A crosses Senkou Span B in the projected zone.
A green-to-red twist warns of bearish weakness ahead. A red-to-green twist signals a possible bullish transition. The twist shows how the future cloud will look, not whether price will reach it. It functions as a caution signal for open positions, not as a direct entry trigger.
A bullish cross occurs when the Tenkan-sen crosses above the Kijun-sen. A bearish cross occurs when the Tenkan-sen crosses below.
Signal strength depends on cloud position. A cross above the Kumo is strong. A cross inside the Kumo is neutral. A cross on the wrong side is weak.
The logic mirrors a golden cross setup, with the Kumo added as a filter. In strong trends the lines may stay separated. That is itself a continuation signal.
Price crossing above the Kijun-sen inside an uptrend is a re-entry signal after a pullback. Price crossing below the Kijun-sen inside a downtrend confirms continued bearish pressure.
The Kijun-sen acts as the equilibrium reference. If equilibrium holds after a pullback, the trend is intact. The Kumo continues to filter signal quality. Signals aligned with cloud direction are the reliable ones.
A cloud breakout occurs when price closes decisively beyond the Kumo. Because price must overcome the entire cloud zone, this signal reflects strong momentum.
A candle that only touches the cloud is not a breakout. Only a confirmed close beyond the far Kumo boundary counts. The stop sits below the opposite boundary, defined by Senkou Span B on the far side of the cloud. Thicker clouds produce more reliable breakouts because the support and resistance level cleared carries more weight.
The Chikou Span is the final confirmation layer for any Ichimoku signal. Bullish confirmation appears when the Chikou sits above prior candles. Bearish confirmation appears when it sits below.
A Chikou Span in open chart space confirms the current Market Trend direction. A Chikou tangled with prior candles offers no confirmation. In fast markets, waiting for the Chikou may delay entry. Some traders use it as a position-sizing filter instead of a binary gate.
The Ichimoku Cloud functions as a complete trading system. Crossovers and breakouts trigger entries. The Chikou Span confirms. The Kumo defines stops. The Kijun-sen or opposite cloud edge sets targets.
The pre-trade checklist enforces discipline.
Step 1: open the chart on the intended timeframe. Step 2: confirm price is on the correct side of the Kumo. Step 3: identify the signal type. Step 4: verify Chikou Span confirmation. Step 5: measure cloud thickness for quality.
Step 6: define the entry price. Step 7: place the stop beyond the opposite Kumo boundary. Step 8: set a target or trail the Kijun-sen. Step 9: monitor against exit criteria.
A trend-following strategy uses the Ichimoku Cloud as the only toolkit. The six-step framework is:
The Kumo carries the dual role of trend filter and stop reference.
Swing traders adapt the system for daily or weekly charts. The primary signal is a pullback to the Kijun-sen inside an established trend. A recross confirms that equilibrium held.
Combining the Ichimoku Cloud with the Relative Strength Index filters signal quality inside a defined Kumo context.
Long setups require price above a green Kumo, an Ichimoku bullish signal, and RSI above 50 and rising. Short setups require price below a red Kumo, an Ichimoku bearish signal, and RSI below 50 and falling.
RSI divergence at the Kumo boundary produces the strongest combination. Over-filtering is possible if perfect alignment across the Kumo, crossover, and RSI is required.
Act 1 (Setup): price trades above a green Kumo. The Tenkan-sen sits above the Kijun-sen.
Act 2 (Entry): price breaks the range with a close above the Kumo. The Chikou Span sits above prior candles. The trader enters long on the close.
Act 3 (Management): the stop sits below the Kumo. The trader trails under the rising Kijun-sen.
Act 4 (Exit): the Tenkan-sen crosses below the Kijun-sen. A candle closes inside the Kumo. The trader exits.
Signal quality depends on stacking. The matrix below ranks Ichimoku setups from strongest to weakest.
| Signal Combination | Direction | Strength |
|---|---|---|
| Kumo breakout + Tenkan/Kijun cross + Chikou confirmation | Bullish or Bearish | Strongest |
| Cloud breakout with Chikou confirmation | Bullish or Bearish | Strong |
| Tenkan/Kijun cross on correct side of Kumo | Bullish or Bearish | Moderate |
| Price/Kijun recross with trend | Bullish or Bearish | Moderate |
| Tenkan/Kijun cross inside Kumo | Either | Weak |
| Countertrend Tenkan/Kijun cross | Countertrend | Weakest |
Systematic traders use scans to surface Ichimoku setups across watchlists. Platforms such as TradingView allow custom scans filtering line-position conditions. Uptrend and downtrend scans use mirror logic.
A three-condition uptrend scan filters watchlists efficiently:
These three conditions confirm an established uptrend with a fresh momentum signal. Optional filters (minimum volume, minimum price) reduce noise from illiquid names.
The downtrend scan mirrors the uptrend logic:
In strong bear markets the scan may return many results. Prioritising setups with the thickest red Kumo focuses attention on quality candidates first.
The default settings are 9, 26, and 52. They reflect the six-day trading week Hosoda worked with in the 1930s. Some traders adjust to 10, 30, and 60 for the modern five-day week. Retaining the defaults preserves signal commonality with the wider Ichimoku community. Shared settings create shared reactions at the same levels. This matters most for Market Trend identification on the timeframes most traders actually use.
Quick reference:
Six common errors reduce Ichimoku signal quality:
Each error stems from applying the system outside its designed conditions. The Ichimoku Cloud was built for trending markets on higher timeframes.
The Ichimoku Cloud is not universal. It has honest limitations.
The system lags by nature because every line uses historical data. It has a steep learning curve compared with single-line indicators. It performs poorly in ranging markets.
Flat clouds produce frequent false crossovers. These weaken both the Trading Signals and the reliability of the support and resistance zones the cloud provides. The default parameters may not fit non-standard trading sessions. The Ichimoku Cloud works best in trending markets on daily or higher timeframes.
